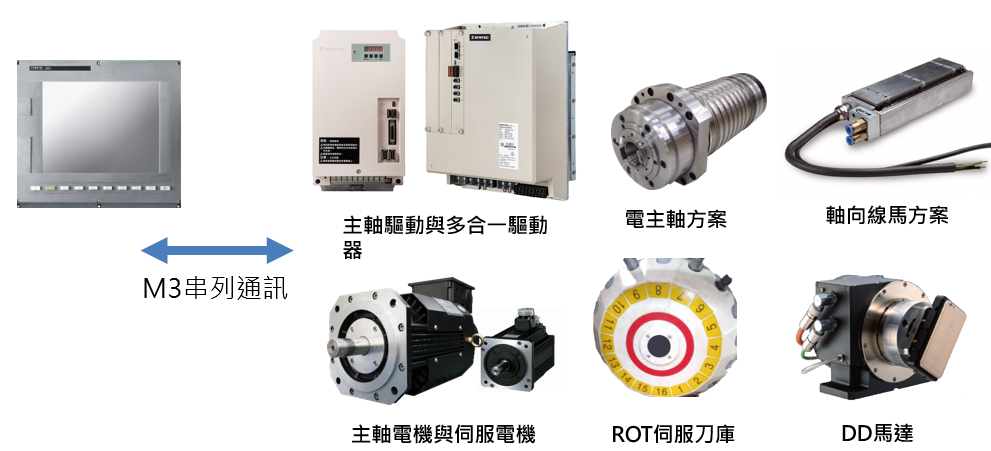

New design of physical appearance Open bus servo communication, support Mechatrolink 3 and Ethercat Focus on the pursuit of higher confidence level.
Able to be used with servos applications Satisfy all of machining needs

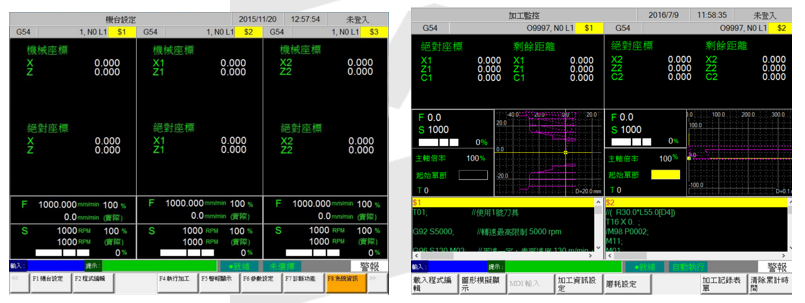

Support for two-way, three-way and four-way applications.
Support 3D tool length compensation feature,user only needs to program product in CAM program,controller will automatically implement tool length and wear,and the tool tip will always on the perpendicular against product contour.
| Controller type | Multi – Axis Group Mill-Turn | |||||
| 11TB | 200TB – 5 | 210TB – H | 210TB – H5 | 220TB | 220TB – 5 | |
| Axis no. | 8 | 12(16) | 12(16) | 12(16) | ||
| DA | 2 | 1 | 2 | – | ||
| Max I/O | 128/128 | 96/96 | 96/96 | 128/128 | ||
| Display | 10.4” | 8”/10.4” | 8”/10.4”/rear haft | 10.4”/15” | ||
| Servo | Pulse | M2 | M2/M3/ECAT/RTEX | M3/ECAT/RTEX | ||
| VGA | – | O | O* | – | ||
| Connection | Ethernet RS485 | Ethernet RS232 RS422 RS485 | Ethernet RS485 SRI | Ethernet RS485 SRI | ||
| Multi-Program No. | 2 | 4 | 4 | 4 | 4 | 4 |
| Memory | 512MB | 256MB | 4GB | 4GB | 4GB | 4GB |
| Inclined Plane process | △ | – | △ | – | △ | |
| HPCC | △ | – | △ | – | △ | |
* VGA is only provided for the rear half ○ Standard－ Not Support△ Optional
We are a professional CNC controller and industrial robot manufacturer. We have been long engaged in the research and development of software and hardware technology for machine tool controllers.
