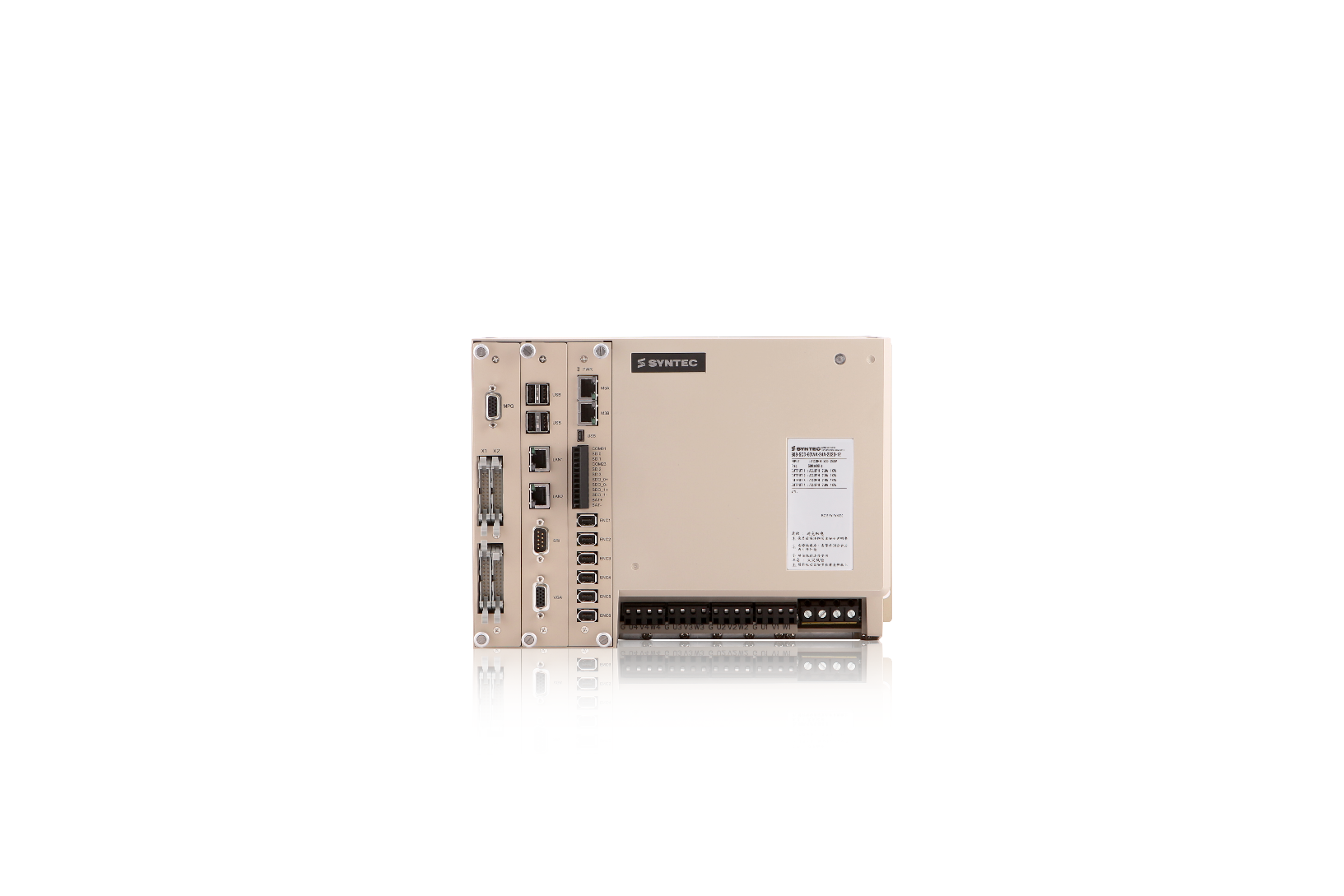

M3 Serial Communication Control and Driver Combine Perfectly

Syntec Controller with Servo Driver Integrated equips Mechatrolink-III and 4-axis 1kW servo driver.Absolute encoder can efficiently increase processing smoothness and avoid communication interference. Also, it can prevent the matching problem of driver and controller. Besides, need not find the original point before using. Furthermore, it saves the space of wiring system. It not only built I/O, VGA, and double internet connecters, but also able to expand axis amount through M3.

I/O is Expandable and Supports Various Communication Surface

-Built 32I/32O and 16I/8O contact. Also, it can cascade FC I/O module through Syntec protocol, fulfilling the demands of multiple I/O points.

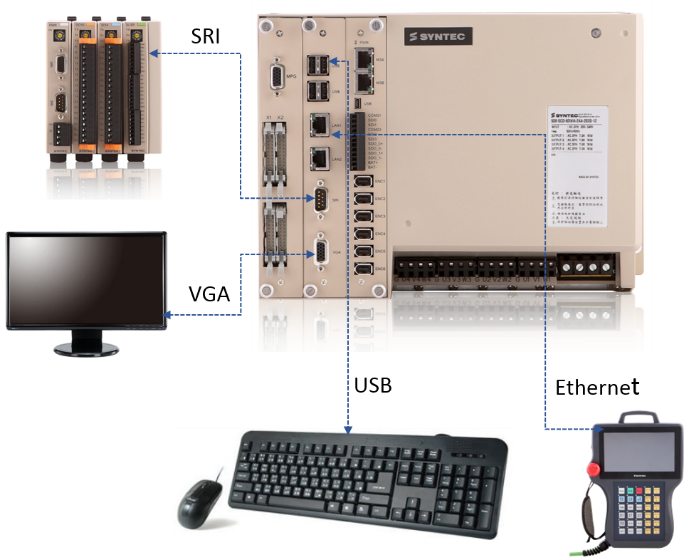

-Controller with Servo Driver Integrated built various communicate surface, supporting RJ45, RS485, USB, and SRI.

Secondary Development Platform Creates Differentiation

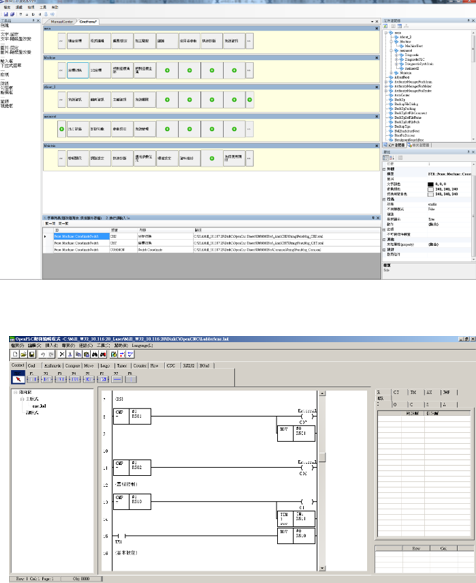

-Syntec ladder diagram and open HMI editor are XCOPY installation

-Syntec ladder diagram supports several functions including online editing, uploading, and downloading. This makes develop more simply

-HMI editor is familiar to Windows editing. This is more user-friendly.

-Drag & drop elements and graphic dialog allow users to edit intuitively.

HPCC and SPA

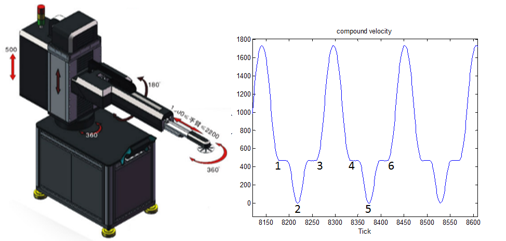

-Followed CNC system with high-speed, high-precision functions, it supports path interpolation and speed smoothing feature.

-Straight line interpolation synchronized increases running efficient.

-Support corners smoothing to increase the efficiency of pick and place.

Line item Automation Controller Integrated Driver Servo
Model 80GM
Drive and control machine
Number of axes Standard 4
Option 16
Maximum simultaneous number 4
Axis group Main system axis group 4
Main system + PLC axis group 4
MST channel 4
Spindle number 6
Hardware Servo Control M3
RAM 512MB
I / O standard
RIO option
DA
Screen
Flash 256MB
DiskC Flash 4GB
DiskA 0
Front interface USB 2
Rear interface RJ-45 2
SRI 1
RS-485 4
USB
KB
H / K
5V output 1
VGA WinCE
System 1. Support G / M code

2. Support eHMI custom

3. Does not support tool-related functions

4. Spindle support

Standard function 1. Vision

2. Remote monitoring

Optional function
Accessory hardware O
Option-4 Enable Plugin Function O
Option-5 Enable PC-CNC Application Δ
Option-11 High Precision Contouring Control Mode Δ
Option-12 Rotation Tool Center Point Control (RTCP) Δ
Option-13 Feature Coordinate System
Option-14 Parameter learning function
Option-15 Tapping Learning Δ
Option-16 Syntec Vision Δ
Option-17 Commercial Vision Software Δ
Option-18 CAD / CAM function CAD / CAM Δ
Option-19 3D Arc Interpolation
Option-20 All in one Pick and Place (All in one) Δ
Option-21 Four Axis Robot Δ
Option-22 Five-Axis Robot Δ
Option-23 Six-Axis Robot Δ
Option-24 Gantry Robot Δ
Option-25 High-speed pre-resolving function Advanced Look-Ahead
Option-26 Smooth Tool Center Point Control (STCP) Δ
Option-27 Multiple mechanisms for five-axis Δ
Option-28 The 2nd coordinate supports five-axis function Δ
Option-29 Four-axis Rotation Tool Center Point Control (4AXRTCP)
Option-30 Five-axis Synchronized Motion Control
Option-31 High Speed ​​Chamfering Contour Control
Option-32 ROT Servo Turret
Option-34 Wood Software
Option-35 3D Laser Scanning
Option-36 Wood Built-In CAM Function
Option-37 Wood Build-In CAM Function
Option-38 Right-angle multi-arm function Multi-Gantry Robot
Option-39 2D simultaneous marking
Option-40 Expand the number of T codes to the maximum limit

O Standard function
△ Optional function
– Not available function
