New design of new generation

New design of physical appearanceOpen bus servo communication, support Mechatrolink 3 and EthercatFocus on the pursuit of higher confidence level

Beyond their own, upgrade their controller performance

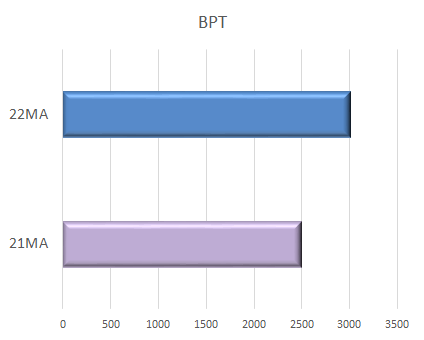

CPU performance, BPT performance increased by 20%, significantly enhanced short single-section mold and machining capacity of products

High speed spindle orientation function (HPCC)

CPU performance, BPT performance increased by 20%, significantly enhanced short single-section mold and machining capacity of products

SPA2.0(ZPEC) Servo Delay Compensation Level Up

-Enhance the precision of arc and corner

-Improve the path symmetry

-Advance the ability to resist the resonance of machines

Category Items Composite Milling
210MA-H 210MB-H 210MA-E 210MB-E 220MA 220MB
Product Specification Max. PLC Controlled Paths 4 4
Max. PLC Controlled Paths 3 3
Standard Axis 8 12 8 12 8 12
Max. Axis (Optional) 9 16 9 16 9 16
Max. Spindle 6 6
Max. Simultaneous Axis Control 4 4 4 4
Min. Control (mm) 0,0001 0,0001 0,0001 0,0001
Max. number of program coordinate 100 100
Max. Number of Table Tools 96 96
Multi-Channel Function Group 4 4
Look-Ahead Blocks no. 2000 2000
Block Processing timT 3000 3000
Hardware Specifications Storage DISKA (MB) 4096 4096
Standard I/O 32/32 32/32 32/32 32/32
Optional I/O 96/96 96/96 96/96 128/128
DA 2 2 2
Monitor (Inch) 10,4 8 10,4 10.4/15
CF Card
CF Card 2 2
USB 2 2
RJ-45 1 2
VGA Output 1***
PS/2
RS-232
RS-422
RS-485 1 1
USB 2
SRI 1 1
Servo Control Pulse Train (A/B Phase)
Pulse Train (CW/CCW)
Mechatrolink II O
Mechatrolink III O O
EtherCAT O O
RTEX O O
Compensation Backlash Compensation O O
Pitch Error Compensation O O
Angular Error Compensation O O
Temperature Error Compensation O O
2 Dimension Error Compensation O O
Operation MPG Simulation O O
Dry Run O O
Optional Stop O O
Single Block O O
Virtual MPG O O
Restart at Feedhold O O
Restart at Break Point O O
Tool Return O O
Fixture Offsets O O
MPG Offsets O O
Programming Optional Skip O O
B-Stop O O
Absolute Zero Point Coordinate (G92/G92.1) O O
Interrupt Macro (M96/M97) O O
M198 call Subroutines O O
Expandable G Code O O
HSHP Constant Jerk Control O O
Multiblocks S-curve motion plan O O
Auto declaration in Corner O O
Speed Limit for Round Radius O O
Multiple Sets of HSHP Parameters O O
Quick Parameter Setup O O
SPA Feature O O
Virtual Radius Funciton (for Rotary Axis) O O
HSHP Control Mode I (G05.1 Q1) O O
HSHP Control Mode II (G05P10000) O O
NURBS Interpolation Ability O O
Tool
Management
Auto Tool Setting O O
Auto Tool Management O O
Tool Life Management O O
Accessibility Machine Lock (R bit) O O
Software Limit O O
Spindle Speed Arrival Check O O
Axis Synchronize Feature O O
Dynamic Axis Synchronize Feature O O
Dynamic Axis Synchronize Feature O O
Rapid Retraction for Rigid Tapping O O
Virtual Axis Feature O O
Axis Change Feature O O
Axial Torque Limit O O
Serial Bus Setting Feature(CNC Axis) O O
Driver Information Display(CNC Axis) O O
Spindle Application Feature(CNC Axis) O O
Serial Bus PLC Axis O O
ROT Element O O
Dipole Front and Back System O O
Data Backup Recovery O O
Customized Opening Screen O O
My Favorites (Only Eight key system supports) O O
Project Protection Feature O O
Limit Access Manager O O
Remote AP Monitor O O
Edit Background Edit O O
Edit Protection O O
Immediate Grammar Check O O
PLC PLC Diagnosis Feature(FORCE I Point) O O
Data Transfer NETWORK O O
FTP O O
RS-485 O O
DNC(Network) O O
DNC(USB) O O
Information Display Operation CV Display O O
Graphic Simulation O O
Partial Graphic Simulation O O
Dynamic Multi-Language Switch O O
Inclined Plane Feature Coordinate(Inclined Plane Process G68.2, G68.3) Δ Δ
Feature Coordinate Teach Δ Δ
5 axis feature 5 Axis RTCP (G43.4)
Smooth TCP
G code command High Precision Locus Control Mode (G05P10000) O O
Smoothing Path Mode (G05.1) O O
NURBS Interpolation (G06.2) O O
Thread Cutting (G33) O O
Auto Tool Measurement (G37) O O
Tool of Offsets (G45~G48) O O
High Speed Peck Drilling Cycle (G73) O O
Left Handed Tapping (G74) O O
High Precision Boring Cycle (G76) O O
Drilling cycling (G81) O O
Chopping (G81.1) O O
Bottom Feed Hold Drilling Cycle (G82) O O
Peck Drilling Cycle (G83) O O
Tapping Cycle (G84) O O
Boring Cycle (G85) O O
High Speed Boring Cycle (G86) O O
Back Boring Cycle (G87) O O
Semi Automatic Finishing Boring Cycle (G88) O O
Bottom Feed Hold Boring Cycle (G89) O O
Multi-Group HSHP Parameter (G120.1) O O
Option Option-4 Enable Plugin Function O O
Option-11 High Precision Contour Control (HPCC) O Δ Δ O
Option-12 Rotation Tool Center Point (RTCP) Δ Δ
Option-13 Feature Coordinate System Δ Δ Δ Δ
Option-14 Parameter learning function
Option-15 Tapping Learning
Option-16Syntec Vision Δ Δ Δ Δ
Option-17 Commercial Vision Software Δ Δ Δ Δ
Option-18 CAD/CAM Δ Δ Δ Δ
Option-19 3D Arc Interpolation Δ Δ
Option-20 Pick and Place (All in one) Δ Δ
Option-21 Four Axis Robot
Option-22 Five Axis Robot
Option-23 Six Axis Robot
Option-24 Gantry Robot Δ Δ
Option-25 Advanced Look-Ahead
Option-26 Smooth Tool Center Point(STCP)
Option-27 Multiple mechanisms for five-axis
Option-28 The 2nd coordinate supports feature coordinate system
Option-29 Four-axis Rotation Tool Center Point Control (4AXRTCP)
Option-31 High Speed Chamfering Contour Control
Option-32 ROT Servo Turret
Option-34 Wood Software
Option-35 3D Laser Scanning
Option-36 Wood Built-In CAM Function

* Only sell in Mainland China
** Only sell in Taiwan
*** VGA is only provided in the rear half

O Standard function
△ Optional function
– Not available function
