SYNTEC provides solutions for pipe bending machines

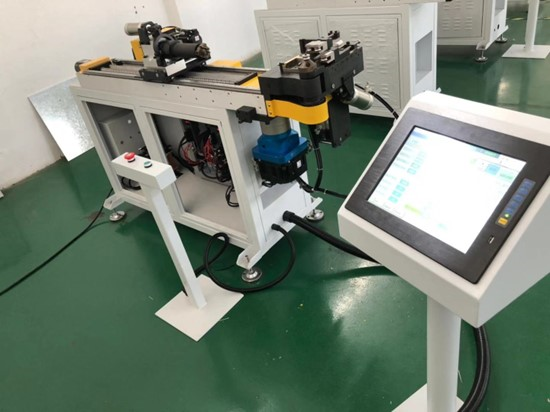

Special CNC controller for pipe bending machine, high speed and high precision, stable and reliable, customized development
Manual page
Programming page
Mold parameters
Elbow parameters
Auto page

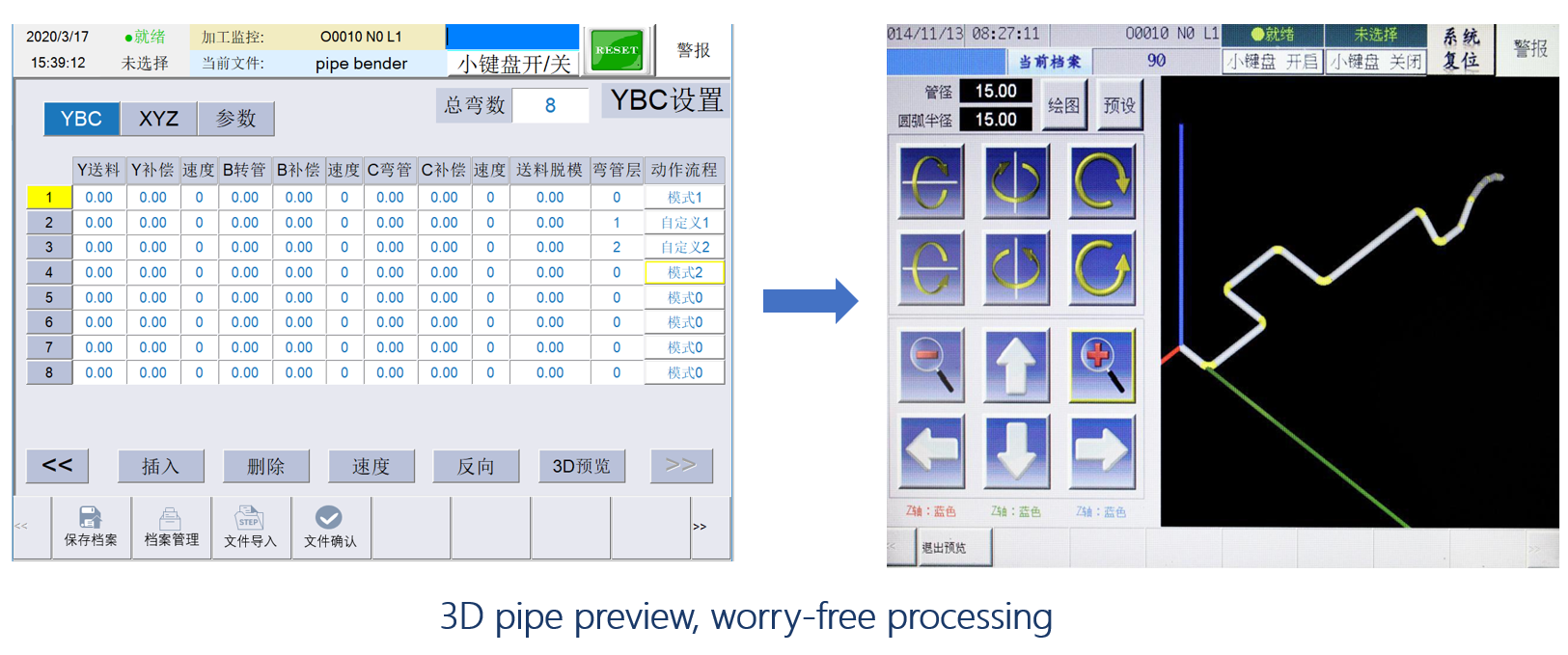

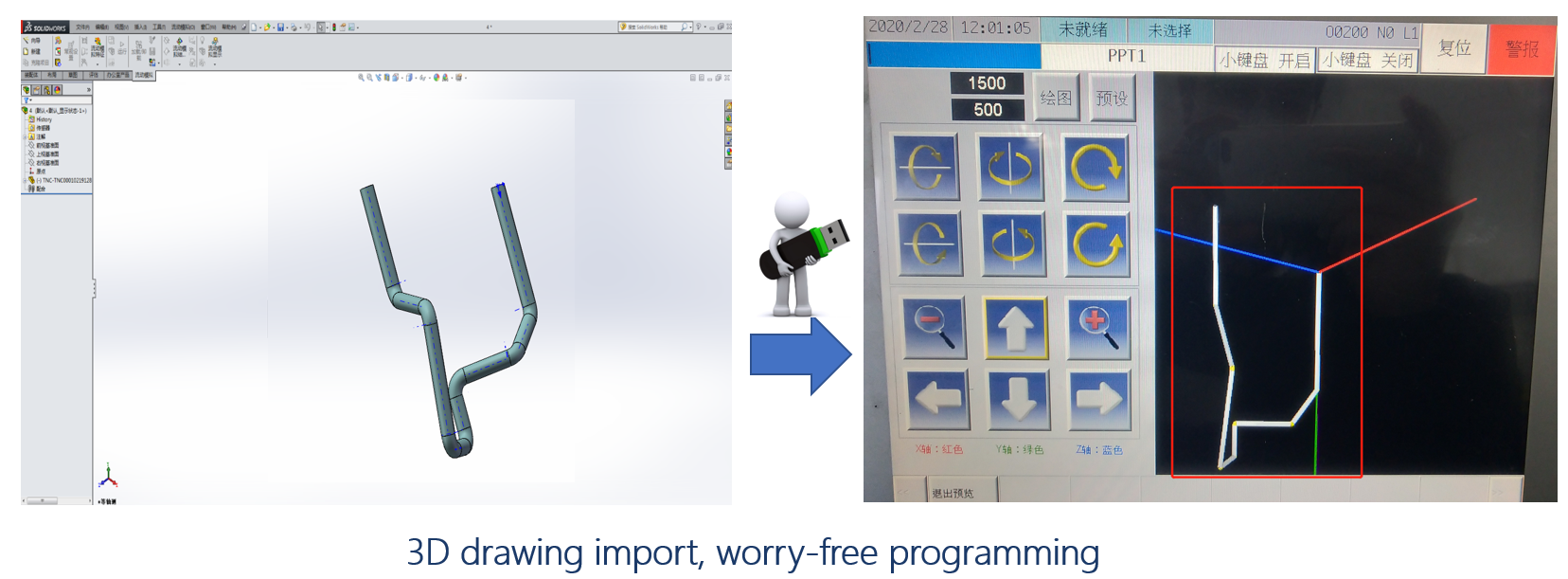

The bending process is fast and efficient. 3D pipe fitting preview, 3D graphics import, 3D simulation, perfect process function

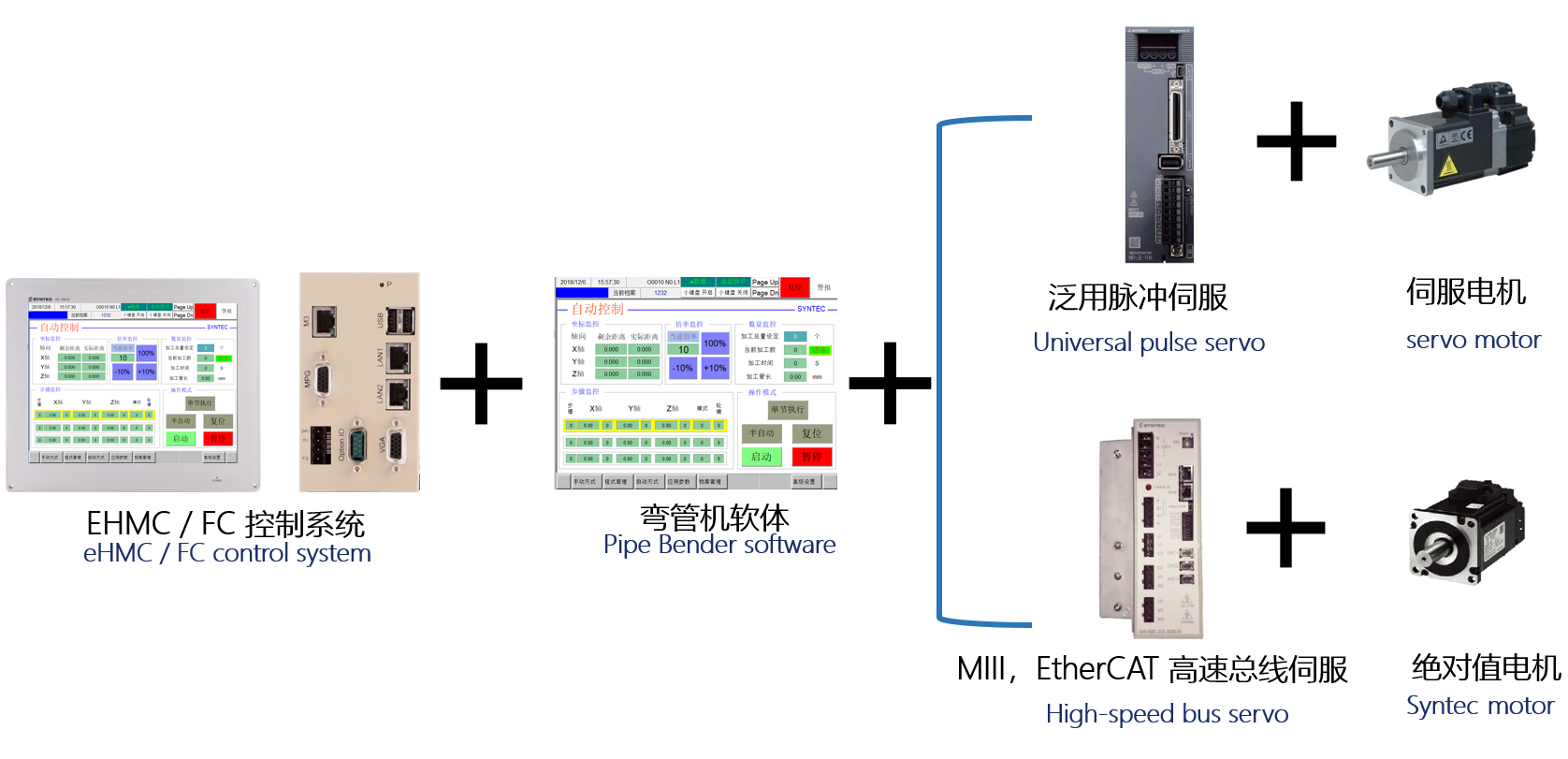

Support pulse servo, M3/EtherCAT and other bus servos, no worry about axial expansion

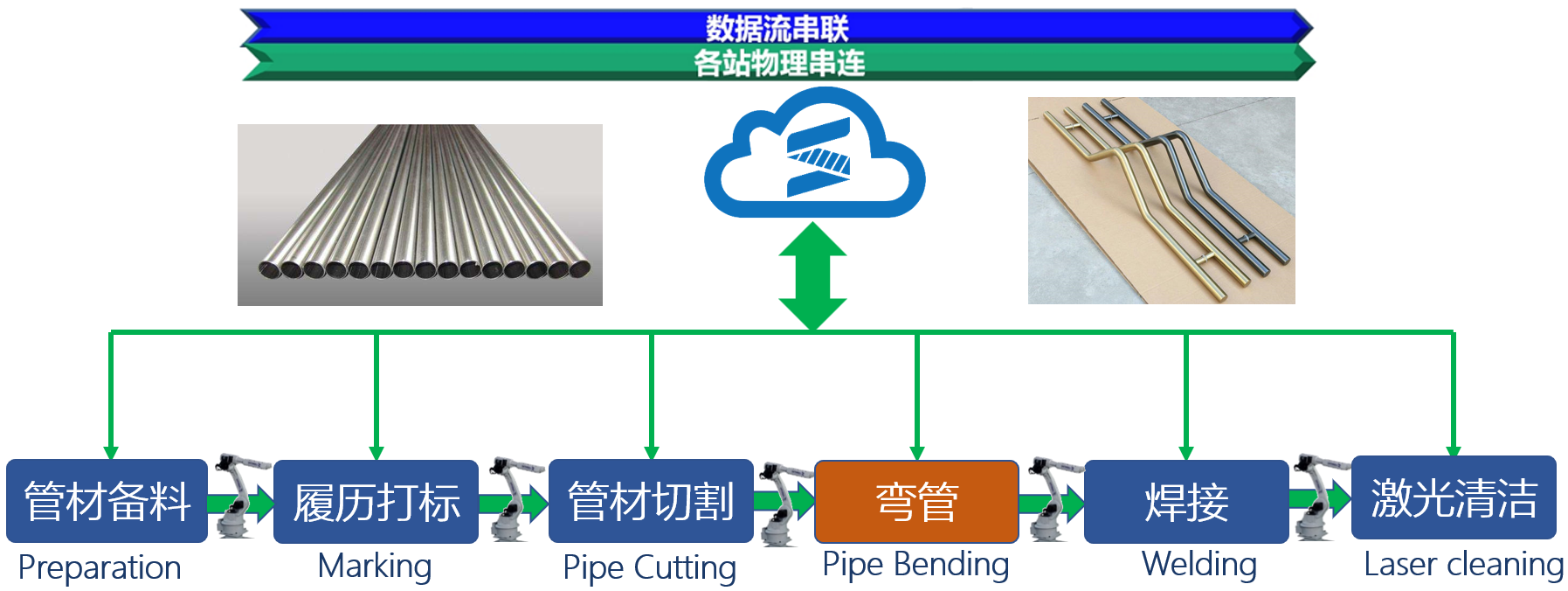

The pipe processing production line is well-equipped, and there are all kinds of solutions such as cutting, welding, robot, and SYNTEC cloud.
| Type | eHMC | ||
| HC- 8A
HC -10A HC -15A |
HC- 8C HC-10C HC-15C |
HC- 8E
HC-10E HC-15E |
|
| Monitor | 8/10/15inch
Touch screen |
8/10/15inch
Touch screen |
8/10inch
Touch screen |
| Axis Communication Interface | Pulse | M3/EtherCAT | |
| Spindle No. | 6 | 10 | |
| USB port | 1 (K)
2 (S) |
4 (K)
2 (S) |
1 (K)
2 (S) |
| RJ45 | 1 (LAN) | 2 (LAN)
1 (M3) |
1 (LAN)
1 (M3) |
| Option I/O | – | 1 (RS485, SRI) | 1 (RS485, SRI) |
| D/A | 2 | – | 2 |
| Control Axis (Max) | 3(8 inch) 4(other) |
4(18) | |
| MPG Port | 1 | – | 1 |
| I/O Number | 32I / 32O | – | 32I / 32O |
| RIO | – | 1 | – |
| Type | FC series | ||
| FC-A | FC-B | FC-C | |
| Monitor | – | – | – |
| Axis communication interface | Pulse | M3/EtherCAT | M3/EtherCAT |
| Spindle No. | 6 | 6 | 6 |
| USB port | 2 | 2 | 2 |
| Ethernet | 1 | 1 | 1 |
| Connection | RS485, SRI | RS485, SRI | RS485, SRI |
| D/A | – | 2 | 2 |
| Axis No. | 4 | 4 | 6 |
| MPG port | 1 | 1 | 1 |
| I/O Number | △ | △ | △ |
| RIO | – | – | – |
○ Standard －Not support △ Option
